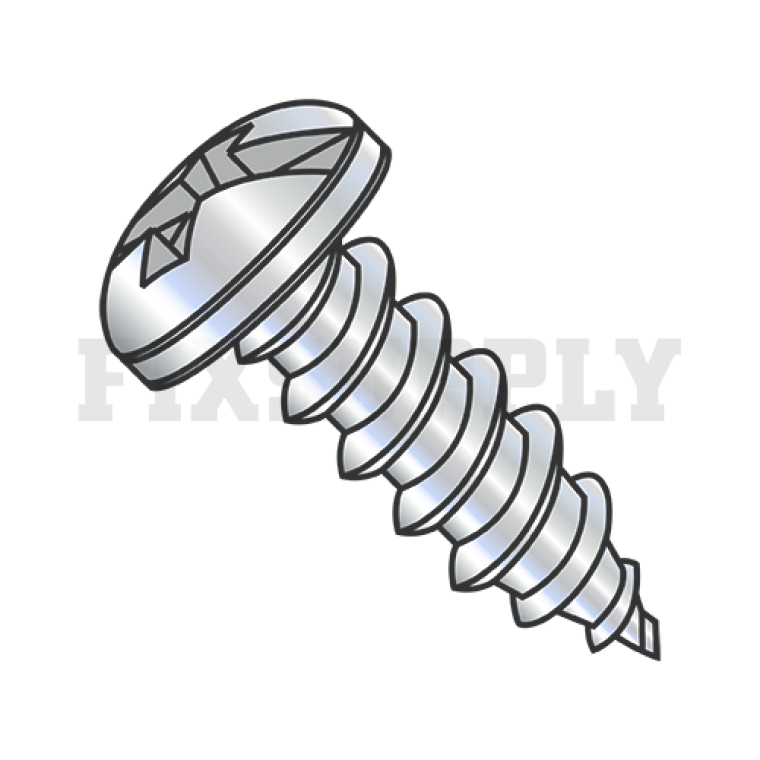

Self-Tapping Screw - Type AB - Phillips & Slotted Drive Pan Head - Zinc Plated Steel - 1/4"-14 Thread - 1/2" Long
Kanebridge
Item #
AL6439
Mfr. Model #
1408ABCP
Self-tapping screws create their own threads but require a pilot hole. The pan head features a disc with chamfered outer edge and short cylindrical sides that resembles a frying pan. Pan heads protrude above the fastening surface. The phillips & slotted combination drive features both a phillips and slotted drive allowing the operator to use either a Phillips or flat-head screwdriver. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 1408ABCP |
| Drive Size | T30 |
| Drive Style | Phillips & Slotted Combo |
| Finish | Zinc Plated |
| Head Diameter | 0.483" |
| Head Diameter Tolerance | (-0.010" to +0.010") |
| Head Height | 0.169" |
| Head Height Tolerance | (-0.006" to +0.006") |
| Head Subtype | Standard |
| Head Type | Pan |
| Length | 1/2" |
| Material | Steel |
| Pack Quantity | 1 |
| Screw Subtype | Standard |
| Screw Type | Self-Tapping |
| Specifications Met | ASME B18.6.3, SAE J933 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | AB |
| Thread Direction | Right Hand |
| Thread Size | 1/4"-14 |
| Threading | Fully Threaded |
$0.11
/
each
Expected to ship Sat. Dec 09
