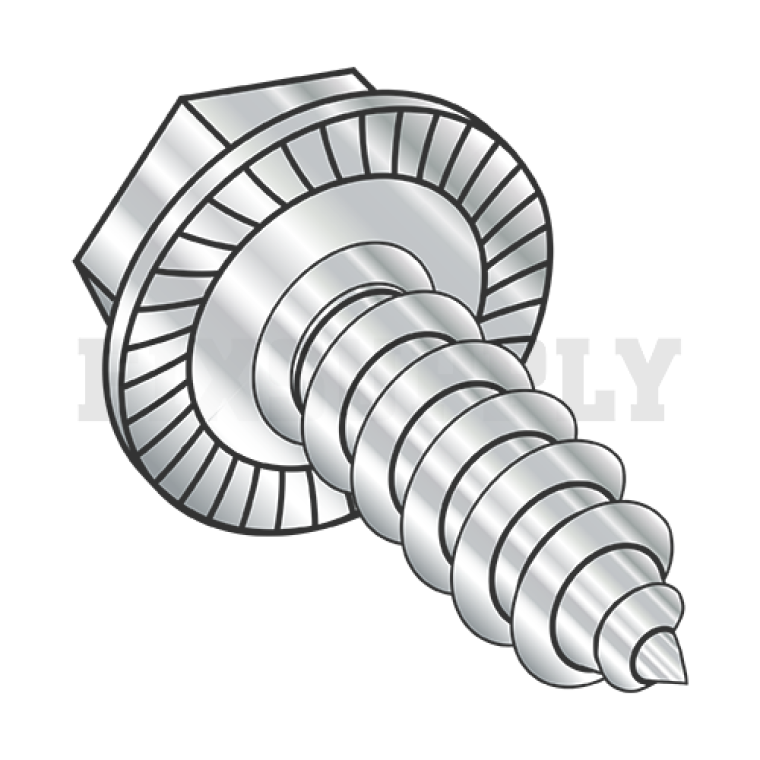

Self-Tapping Screw - Type AB - Indented Hex Washer Head Serrated - 18-8 Stainless Steel - 8-18 Thread - 1" Long
Kanebridge
Item #
AL6411
Mfr. Model #
0816ABWS188
Self-tapping screws create their own threads but require a pilot hole. The hex washer serrated head has an external hex head with a washer-style flange attached underneath the head which creates a large surface connection area. Hex heads protrude above the surface. The externally driven head allows greater torque to be applied to the screw compared to other screws that are internally driven. The serrations provide teeth-like grooves underneath the washer that bites into the surface to resist vibration. The external hex drive is designed to be used with a ratchet. 18-8 stainless steel, also commonly known as 304 or A2 stainless steel, has good chemical resistance and may be mildly magnetic.
Specifications
Brand Name | Kanebridge |
---|---|
Brand Part Number | 0816ABWS188 |
Drive Style | External Hex |
Finish | Plain |
Head Diameter | 0.247" |
Head Diameter Tolerance | (-0.003" to +0.003") |
Head Height | 0.103" |
Head Height Tolerance | (-0.007" to +0.007") |
Head Subtype | Serrated Washer |
Head Type | Indented Hex |
Length | 1" |
Material | 18-8 Stainless Steel |
Pack Quantity | 1 |
Screw Subtype | Standard |
Screw Type | Self-Tapping |
Specifications Met | ASME B18.6.3 |
System of Measurement | Inch |
Tapping/Drilling Screw Type | AB |
Thread Direction | Right Hand |
Thread Size | 8-18 |
Threading | Fully Threaded |
