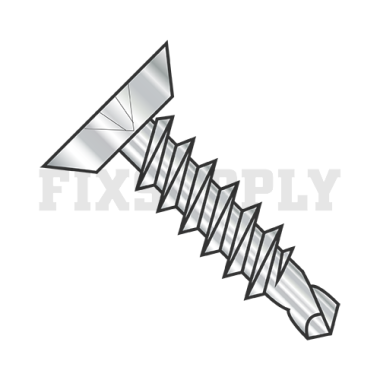

Self-Drilling Screw - Type BSD - Phillips Drive Flat Undercut Head - 410 Stainless Steel - 6-20 Thread - 3/8" Long - #2 Drill Point
Kanebridge
Item #
AL2917
Mfr. Model #
0606KPU410
Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The flat undercut head is similar to the standard flat head but has a shorter head, providing the screw with a longer thread than a standard flat head screw of the same length. The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. 410 stainless steel exhibits excellent corrosion and abrasion resistance.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 0606KPU410 |
| Countersink Angle | 82° |
| Drive Size | No. 2 |
| Drive Style | Phillips |
| Finish | Plain |
| Head Diameter | 0.250" |
| Head Diameter Tolerance | (-0.012" to +0.012") |
| Head Height | 0.054" |
| Head Height Tolerance | (-0.006" to +0.006") |
| Head Subtype | Undercut |
| Head Type | Flat |
| Length | 3/8" |
| Material | 410 Stainless Steel |
| Pack Quantity | 1 |
| Point Type | #2 Drill Point |
| Screw Subtype | Standard |
| Screw Type | Self-Drilling |
| Specifications Met | ASME B18.6.3, SAE J78 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | BSD |
| Thread Direction | Right Hand |
| Thread Size | 6-20 |
| Threading | Fully Threaded |
$0.08
/
each
Expected to ship Wed. Sep 27
