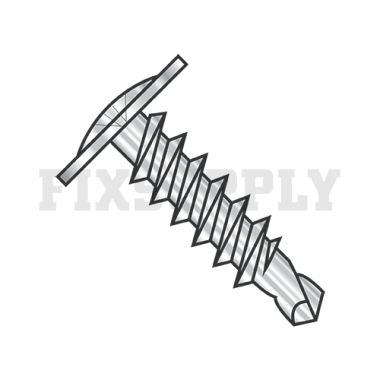

Self-Drilling Screw - Type BSD - Phillips Drive Modified Truss Head - 18-8 Stainless Steel - 12-14 Thread - 1" Long - #3 Drill Point

Item #
Mfr. Model # 1216KPM188

Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The truss head has a curved surface, extra-wide profile, and a lower profile than most pan head screws. Modified truss heads have extra flange around the outside of the head which increases the bearing force. The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. 18-8 stainless steel, also commonly known as 304 or A2 stainless steel, has good chemical resistance and may be mildly magnetic.

More Information
Brand Name Kanebridge
Brand Part Number 1216KPM188
Drive Size No. 2
Drive Style Phillips
Finish Plain
Head Diameter 0.452"
Head Diameter Tolerance (-0.012" to +0.012")
Head Height 0.113"
Head Height Tolerance (-0.012" to +0.012")
Head Subtype Standard
Head Type Truss Modified
Length 1"
Material 18-8 Stainless Steel
Pack Quantity 1
Point Type #3 Drill Point
Screw Subtype Standard
Screw Type Self-Drilling
Specifications Met SAE J78
System of Measurement Inch
Tapping/Drilling Screw Type BSD
Thread Direction Right Hand
Thread Size 12-14
Threading Fully Threaded
$0.45 / each
Must purchase in increments of 500
This item is temporarily unavailable.
