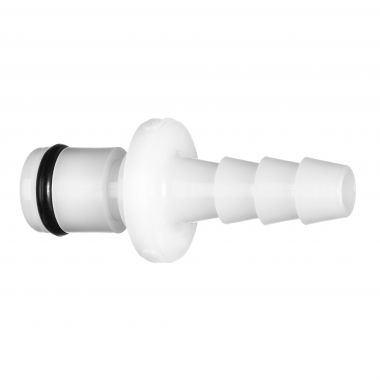

Quick Disconnect Tube Fitting with Auto Shut-Off - Acetal Plastic - Panel Mount Straight - 1/8" Bulkhead Plug x 3/16" Barbed Hose
USA Sealing
Item #
AE3799
Mfr. Model #
ZUSA-TF-QD-A-16
Quick Disconnect fittings consist of a socket and a plug, sometimes called a coupling and an insert. They easily connect and disconnect with the push of a latch. When they disconnect a built-in valve stops the flow automatically. They are made of lightweight Acetal plastic with a stainless steel latch. They are used with water, air, gas, and many chemicals.
Specifications
| Brand Name | USA Sealing |
|---|---|
| Brand Part Number | ZUSA-TF-QD-A-16 |
| Connection (A) | 1/8" Plug |
| Connection (B) | 3/16" Hose Barb |
| Hose Barb Size (For Tube ID) | 3/16" |
| Latch Material | 316 Stainless Steel |
| Material | Acetal |
| Mounting Option | Panel Mount |
| Plug Tip Diameter | 5/16" |
| Plug/Socket | Plug |
| Plug/Socket Size | 1/8" |
| Ring Material | EPDM |
| Shape | Straight |
| Temperature Range | -40° to 190° F |
| Valve Type | Shut-Off |
$13.95
/
each
Expected to ship Tue. Sep 26
