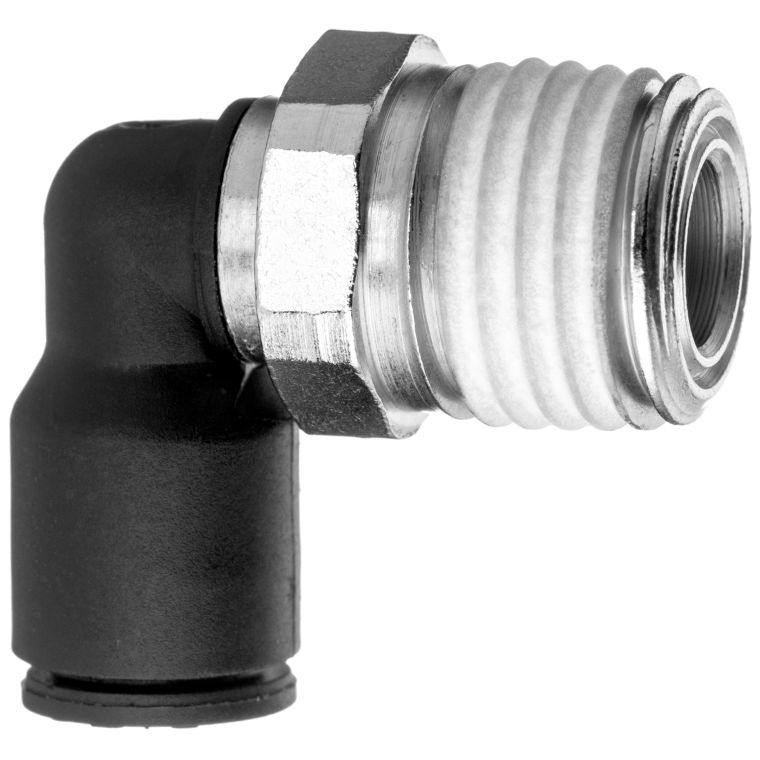

Push to Connect Tube Fitting - Nylon Plastic - Male Elbow - 10mm Tube OD x 3/8" NPT Male
Brand
USA Sealing
Item #
AE2352
Mfr. Model #
ZUSA-TF-PTC-240
Also known as one touch fittings, these tube fittings are designed to slide into the fitting with an internal grasping ring holding it in place. Intended for low pressure applications and for use with plastic and soft metal tubing. Nylon is well suited for air applications.
Specifications
| Body Color | Black |
|---|---|
| Brand Name | USA Sealing |
| Brand Part Number | ZUSA-TF-PTC-240 |
| Connection (A) | 10mm Tube |
| Connection (B) | 3/8" NPT Male |
| For Tube OD | 10mm |
| Gripping Ring Material | Stainless Steel |
| Material | Nylon |
| Maximum Vacuum | 28 in. of Hg @ 72° F |
| O-Ring Material | Buna-N |
| Pipe Size | 3/8" |
| Pipe Thread Material | Nickel-Plated Brass |
| Pipe Thread Sealant Material | PTFE |
| Pipe Thread Type | NPT Male |
| Ring Release Color | Black |
| Ring Release Material | Plastic |
| Shape | 90 Degree Elbow |
| Style | Male Elbow |
| Working Pressure | 145 psi |
Price
$4.05
/
each
