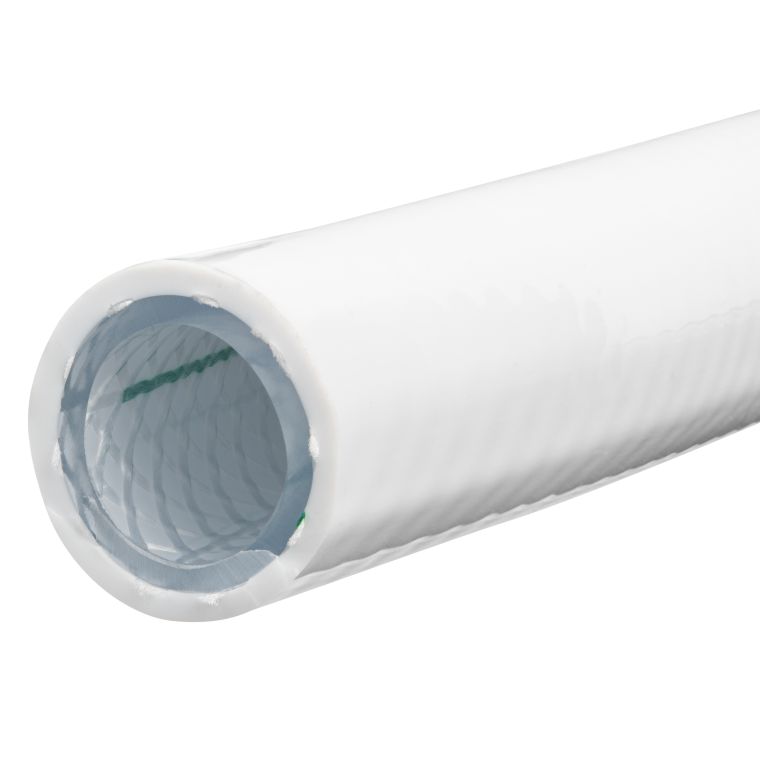

Polyester Braid Reinforced 3A & FDA Silicone Tubing - 32mm ID x 42mm OD x 100 ft. Long
Brand
USA Industrials
Item #
AD9649
Mfr. Model #
ZUSA-HT-4007
This high purity silicone tubing is platinum cured, made of FDA compliant materials, and certified to 3A standards for food, beverage, dairy, and pharmaceutical applications. It is also reinforced with a polyester braid to withstand higher pressures.
Specifications
| Bend Radius | 100mm |
|---|---|
| Brand Name | USA Industrials |
| Brand Part Number | ZUSA-HT-4007 |
| Clarity | Semi-Clear |
| Color | White |
| Curing Method | Platinum Cured |
| Durometer | 70A |
| Grade | Food |
| Hardness | Soft (60A - 80A) |
| ID | 32mm |
| Length | 100 ft. |
| Material | Silicone |
| OD | 42mm |
| Operating Pressure | 220 psi |
| Reinforcement | Polyester Braid |
| Specifications Met | FDA, 3A 18-03 |
| Temperature Range | -80° to 420° F |
| Wall Thickness | 5mm |
Price
$3,483.05
/
each
4 units in stock. Estimated to ship Tue. Aug 11
Need more? Estimated to ship Tue. Dec 15
