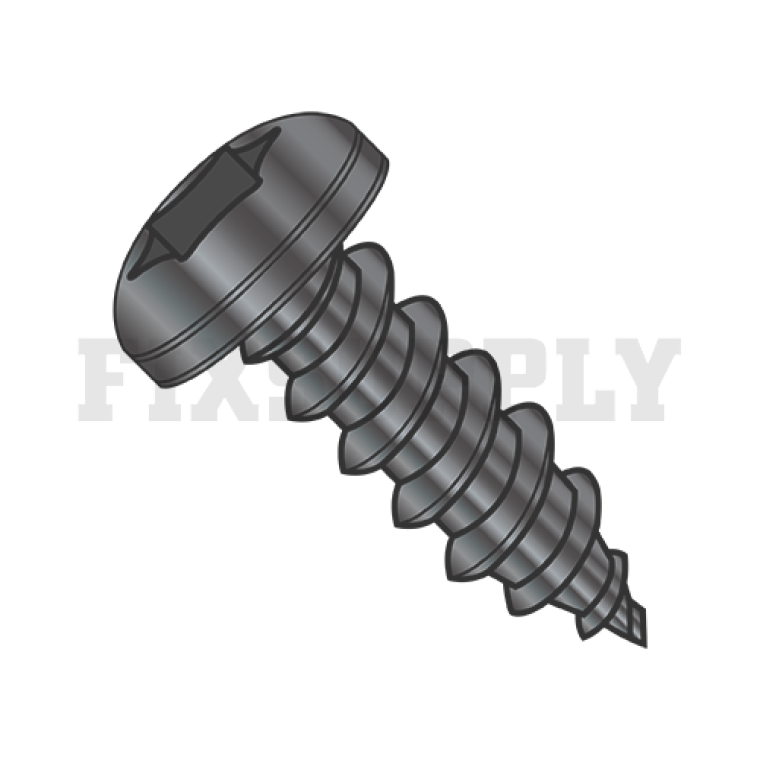

Self-Tapping Screw - Type AB - 6-Lobe Drive Pan Head - Black Zinc Steel - 6-20 Thread - 1/2" Long
Kanebridge
Item #
AL6184
Mfr. Model #
0608ABTPBZ
Self-tapping screws create their own threads but require a pilot hole. The pan head features a disc with chamfered outer edge and short cylindrical sides that resembles a frying pan. Pan heads protrude above the fastening surface. The 6-lobe drive, commonly referred to as Torx, has six points of contact allowing the operator to tighten the screw without stripping the recess. Black zinc-plated steel offers good corrosion resistance in applications not exposed to excessive moisture and provides anti-galling properties.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 0608ABTPBZ |
| Drive Size | T15 |
| Drive Style | 6-Lobe |
| Finish | Black Zinc |
| Head Diameter | 0.263" |
| Head Diameter Tolerance | (-0.007" to +0.007") |
| Head Height | 0.092" |
| Head Height Tolerance | (-0.005" to +0.005") |
| Head Subtype | Standard |
| Head Type | Pan |
| Length | 1/2" |
| Material | Steel |
| Pack Quantity | 1 |
| Screw Subtype | Standard |
| Screw Type | Self-Tapping |
| Specifications Met | ASME B18.6.3, SAE J933 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | AB |
| Thread Direction | Right Hand |
| Thread Size | 6-20 |
| Threading | Fully Threaded |
$0.07
/
each
Expected to ship Tue. Dec 12
