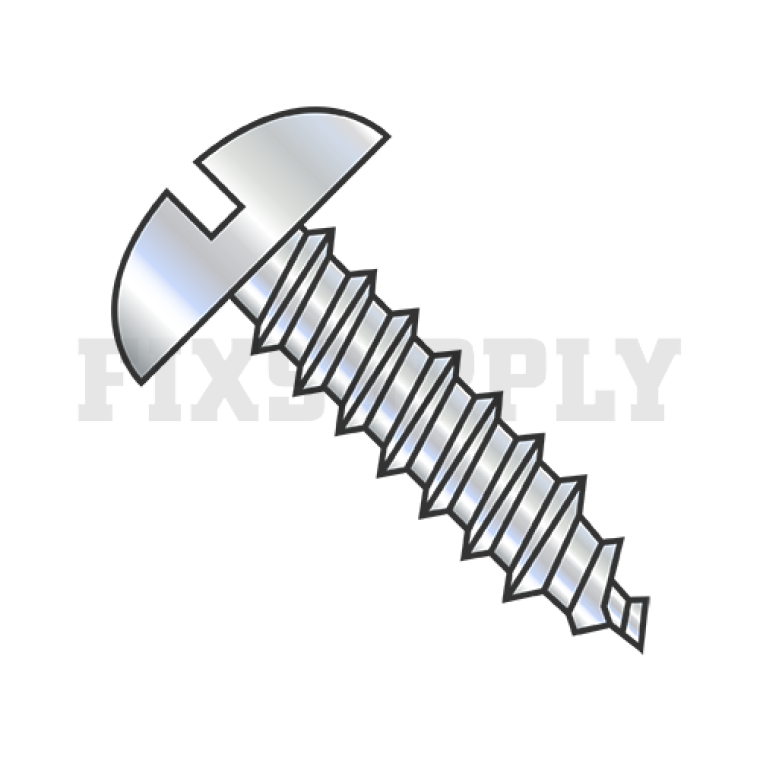

Self-Tapping Screw - Type A - Slotted Round Head - Zinc Plated Steel - 10-12 Thread - 1/2" Long
Kanebridge
Item #
AL5942
Mfr. Model #
1008ASR
Self-tapping screws create their own threads but require a pilot hole. The round head has a domed head, a smaller surface bearing, and protrudes above the fastening surface. The slotted drive has a straight-line notch grooved into the surface the head and is designed to be used with flat-headed screwdrivers. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 1008ASR |
| Drive Style | Slotted |
| Finish | Zinc Plated |
| Head Diameter | 0.347" |
| Head Diameter Tolerance | (-0.013" to +0.013") |
| Head Height | 0.130" |
| Head Height Tolerance | (-0.007" to +0.007") |
| Head Subtype | Standard |
| Head Type | Round |
| Length | 1/2" |
| Material | Steel |
| Pack Quantity | 1 |
| Screw Subtype | Standard |
| Screw Type | Self-Tapping |
| Specifications Met | ASME B18.6.3, SAE J933 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | A |
| Thread Direction | Right Hand |
| Thread Size | 10-12 |
| Threading | Fully Threaded |
$0.03
/
each
Expected to ship Tue. Dec 05
