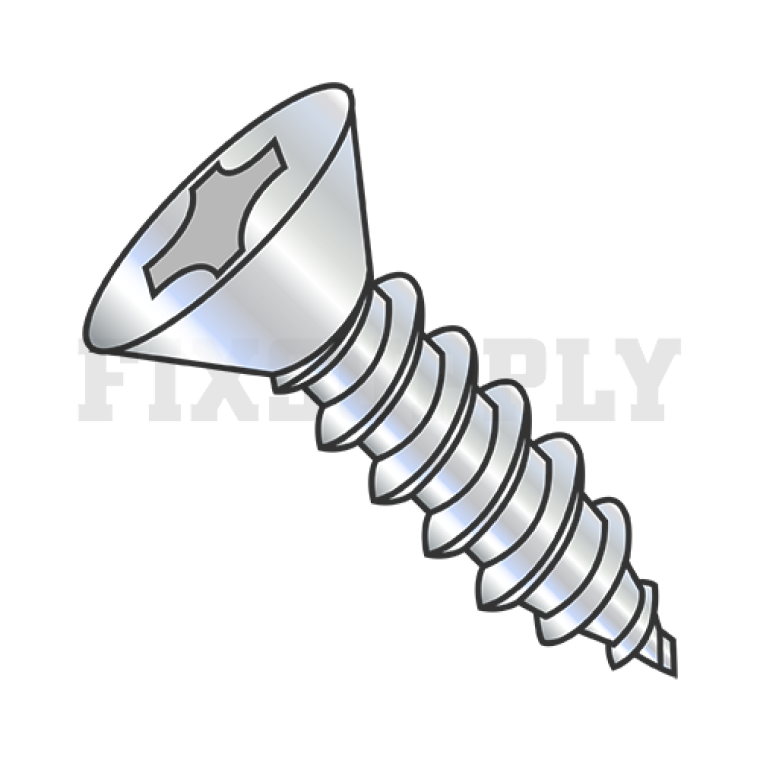

Self-Tapping Screw - Type AB - Phillips Drive Flat Head - Zinc Plated Steel - 4-24 Thread - 3/4" Long
Kanebridge
Item #
AL6665
Mfr. Model #
0412ABPF
Self-tapping screws create their own threads but require a pilot hole. The flat head features a conical head and flat top, and it is countersunk for a smooth, flush surface. The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 0412ABPF |
| Countersink Angle | 82° |
| Drive Size | No. 1 |
| Drive Style | Phillips |
| Finish | Zinc Plated |
| Head Diameter | 0.202" |
| Head Diameter Tolerance | (-0.011" to +0.011") |
| Head Height | 0.061" |
| Head Height Tolerance | (-0.006" to +0.006") |
| Head Subtype | Standard |
| Head Type | Flat |
| Length | 3/4" |
| Material | Steel |
| Pack Quantity | 1 |
| Screw Subtype | Standard |
| Screw Type | Self-Tapping |
| Specifications Met | ASME B18.6.3, SAE J933 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | AB |
| Thread Direction | Right Hand |
| Thread Size | 4-24 |
| Threading | Fully Threaded |
$0.03
/
each
Expected to ship Tue. Dec 05
