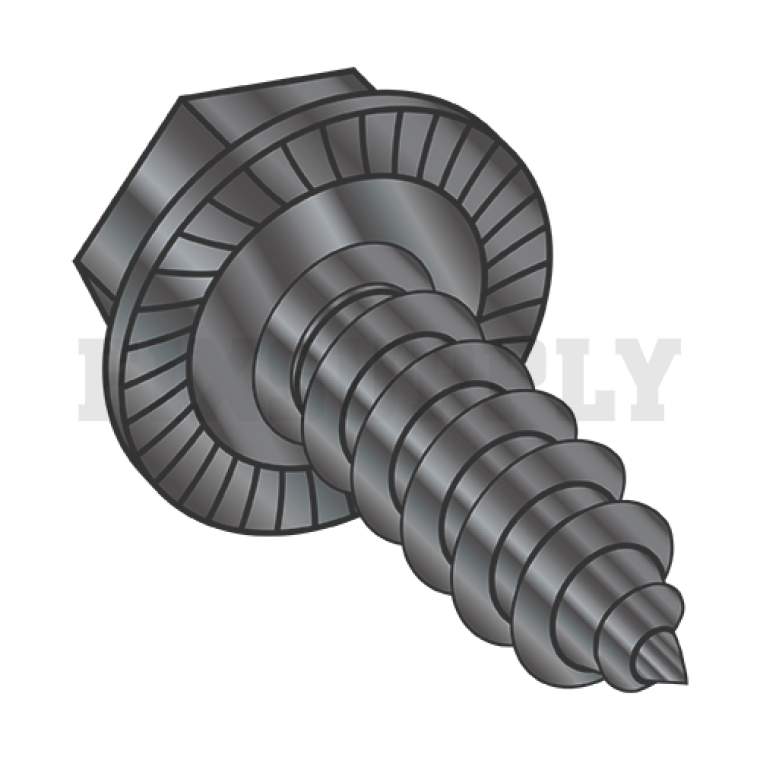

Self-Tapping Screw - Type AB - Indented Hex Washer Head Serrated - Black Oxide Steel - 10-16 Thread - 1" Long
Brand
Kanebridge
Item #
AL6413
Mfr. Model #
1016ABWSB
Self-tapping screws create their own threads but require a pilot hole. The hex washer serrated head has an external hex head with a washer-style flange attached underneath the head which creates a large surface connection area. Hex heads protrude above the surface. The externally driven head allows greater torque to be applied to the screw compared to other screws that are internally driven. The serrations provide teeth-like grooves underneath the washer that bites into the surface to resist vibration. The external hex drive is designed to be used with a ratchet. Black oxide steel offers mild corrosion resistance and essentially has no risk of hydrogen embrittlement.
Specifications
Brand Name | Kanebridge |
---|---|
Brand Part Number | 1016ABWSB |
Drive Style | External Hex |
Finish | Black Oxide |
Head Diameter | 0.309" |
Head Diameter Tolerance | (-0.004" to +0.004") |
Head Height | 0.113" |
Head Height Tolerance | (-0.007" to +0.007") |
Head Subtype | Serrated Washer |
Head Type | Indented Hex |
Length | 1" |
Material | Steel |
Pack Quantity | 1 |
Screw Subtype | Standard |
Screw Type | Self-Tapping |
Specifications Met | ASME B18.6.3, SAE J933 |
System of Measurement | Inch |
Tapping/Drilling Screw Type | AB |
Thread Direction | Right Hand |
Thread Size | 10-16 |
Threading | Fully Threaded |
Price
$0.09
/
each
