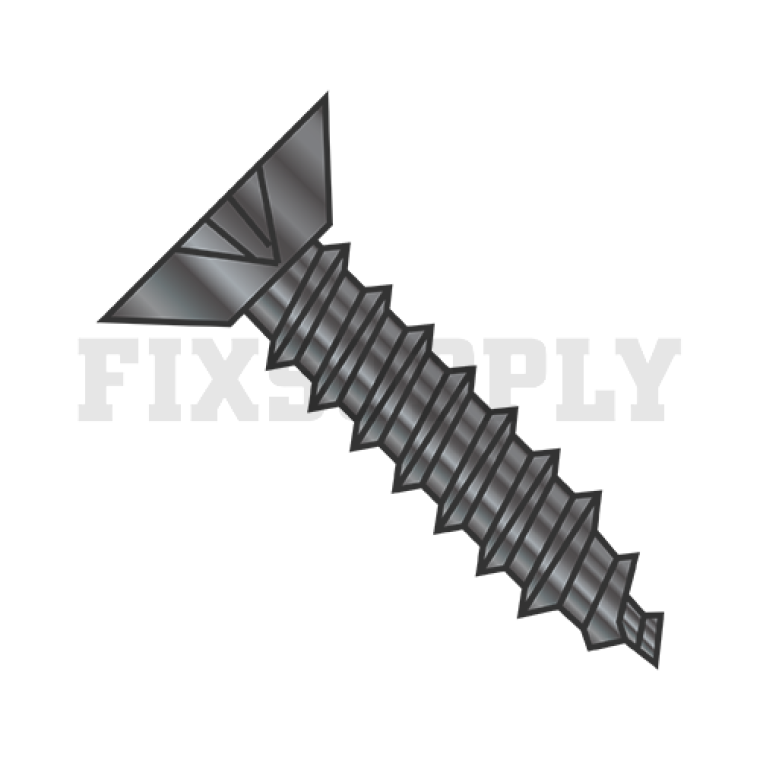

Self-Tapping Screw - Type AB - Phillips Drive Flat Undercut Head - Black Oxide Steel - 10-16 Thread - 5/16" Long
Brand
Kanebridge
Item #
AL6757
Mfr. Model #
1005ABPUB
Self-tapping screws create their own threads but require a pilot hole. The flat undercut head is similar to the standard flat head but has a shorter head, providing the screw with a longer thread than a standard flat head screw of the same length. The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. Black oxide steel offers mild corrosion resistance and essentially has no risk of hydrogen embrittlement.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 1005ABPUB |
| Countersink Angle | 82° |
| Drive Size | No. 2 |
| Drive Style | Phillips |
| Finish | Black Oxide |
| Head Diameter | 0.348" |
| Head Diameter Tolerance | (-0.015" to +0.015") |
| Head Height | 0.075" |
| Head Height Tolerance | (-0.007" to +0.007") |
| Head Subtype | Undercut |
| Head Type | Flat |
| Length | 5/16" |
| Material | Steel |
| Pack Quantity | 1 |
| Screw Subtype | Standard |
| Screw Type | Self-Tapping |
| Specifications Met | ASME B18.6.3, SAE J933 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | AB |
| Thread Direction | Right Hand |
| Thread Size | 10-16 |
| Threading | Fully Threaded |
Price
$0.08
/
each
