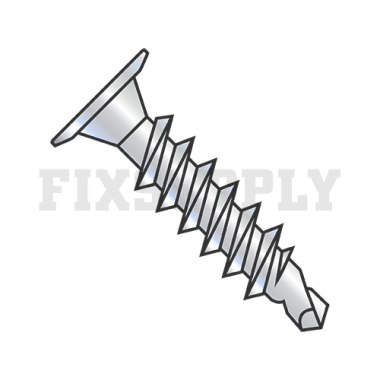

Self-Drilling Screw - Type BSD - Phillips Drive Wafer Head - Zinc Plated Steel - 8-18 Thread - 1/2" Long - #2 Drill Point
Kanebridge
Item #
AL3555
Mfr. Model #
0808KWAF
Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The wafer head features a flat-top and it is countersunk for a smooth, flat finish. Wafer heads are most often found in self-drilling screws.The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 0808KWAF |
| Countersink Angle | 150° |
| Drive Size | No. 2 |
| Drive Style | Phillips |
| Finish | Zinc Plated |
| Head Diameter | 0.370" |
| Head Diameter Tolerance | (-0.011" to +0.011") |
| Head Height | 0.098" |
| Head Height Tolerance | (-0.012" to +0.012") |
| Head Subtype | Standard |
| Head Type | Wafer |
| Length | 1/2" |
| Material | Steel |
| Pack Quantity | 1 |
| Point Type | #2 Drill Point |
| Screw Subtype | Standard |
| Screw Type | Self-Drilling |
| Specifications Met | ASME B18.6.3, SAE J78 |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | BSD |
| Thread Direction | Right Hand |
| Thread Size | 8-18 |
| Threading | Fully Threaded |
$0.05
/
each
Expected to ship Tue. Oct 03
