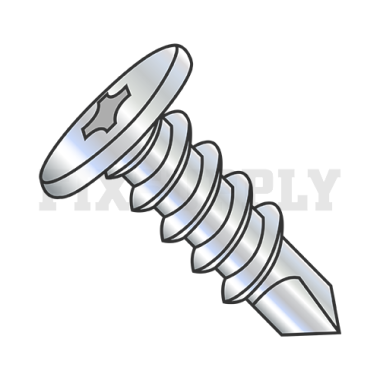

Self-Drilling Screw - Type BSD - Phillips Drive Pancake Head - Zinc Plated Steel - 1/4"-14 Thread - 1" Long - #3 Drill Point
Kanebridge
Item #
AL3501
Mfr. Model #
1416KPC
Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The pancake head is round with a low-profile head.The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
Specifications
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 1416KPC |
| Countersink Angle | 80° |
| Drive Size | No. 3 |
| Drive Style | Phillips |
| Finish | Zinc Plated |
| Head Diameter | 0.512" |
| Head Diameter Tolerance | (-0.014" to +0.014") |
| Head Height | 0.084" |
| Head Height Tolerance | (-0.006" to +0.006") |
| Head Subtype | Standard |
| Head Type | Pancake |
| Length | 1" |
| Material | Steel |
| Pack Quantity | 1 |
| Point Type | #3 Drill Point |
| Screw Subtype | Standard |
| Screw Type | Self-Drilling |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | BSD |
| Thread Direction | Right Hand |
| Thread Size | 1/4"-14 |
| Threading | Fully Threaded |
$0.18
/
each
Expected to ship Wed. Oct 04
