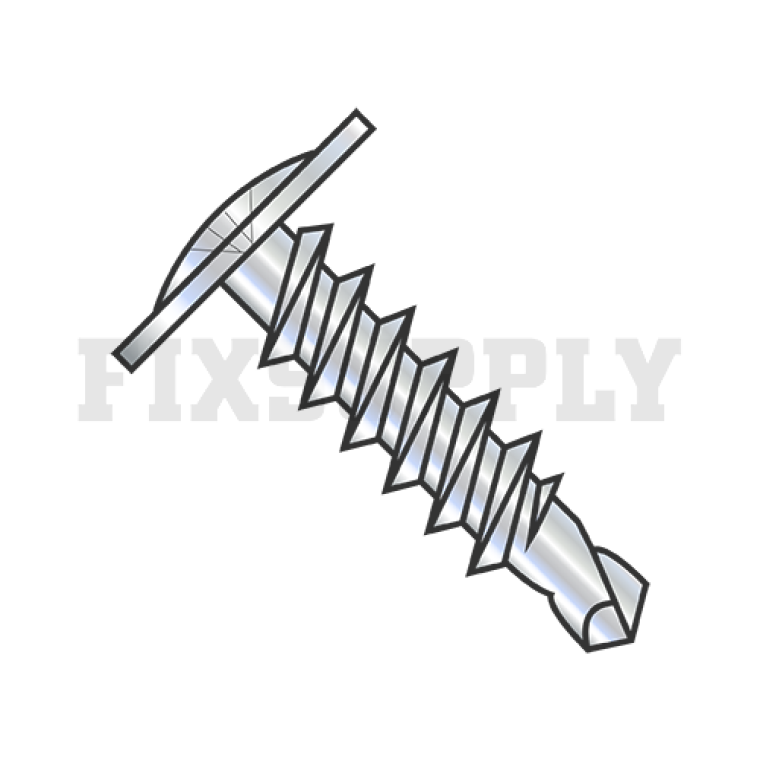

Self-Drilling Screw - Type BSD - Phillips Drive Modified Truss Head - Zinc Plated Steel - 8-18 Thread - 1-3/8" Long - #2 Drill Point

Item #
Mfr. Model # 0822KPM

Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The truss head has a curved surface, extra-wide profile, and a lower profile than most pan head screws. Modified truss heads have extra flange around the outside of the head which increases the bearing force. The phillips drive has a cross-shaped indent for use with a Phillips screwdriver. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.

More Information
Brand Name Kanebridge
Brand Part Number 0822KPM
Drive Size No. 2
Drive Style Phillips
Finish Zinc Plated
Head Diameter 0.436"
Head Diameter Tolerance (-0.010" to +0.010")
Head Height 0.090"
Head Height Tolerance (-0.008" to +0.008")
Head Subtype Standard
Head Type Truss Modified
Length 1-3/8"
Material Steel
Pack Quantity 1
Point Type #2 Drill Point
Screw Subtype Standard
Screw Type Self-Drilling
Specifications Met SAE J78
System of Measurement Inch
Tapping/Drilling Screw Type BSD
Thread Direction Right Hand
Thread Size 8-18
Threading Fully Threaded
$0.08 / each

Must purchase in increments of 3000
Expected to ship Wed. Oct 04
