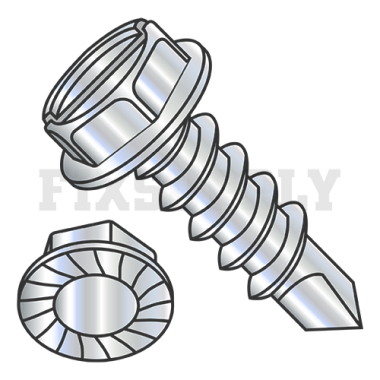

Self-Drilling Screw - Type BSD - Slotted Indented Hex Washer Head Serrated - 7/16" A/F - 0.172" to 0.190" Head Height - Zinc Plated Steel - 1/4"-14 Thread - 1-1/2" Long - #3 Drill Point
Self-drilling screws are efficient because they eliminate the need for a pilot hole, tap their own threads, and fasten materials in a single operation. The hex washer serrated head has an external hex head with a washer-style flange attached underneath the head which creates a large surface connection area. Hex heads protrude above the surface. The externally driven head allows greater torque to be applied to the screw compared to other screws that are internally driven. The serrations provide teeth-like grooves underneath the washer that bites into the surface to resist vibration. The slotted drive has a straight-line notch grooved into the surface the head and is designed to be used with flat-headed screwdrivers. Zinc plated steel offers good corrosion resistance in applications not exposed to excessive moisture.
| Brand Name | Kanebridge |
|---|---|
| Brand Part Number | 142407KSWS |
| Drive Style | Slotted |
| Finish | Zinc Plated |
| Head Diameter | 0.433" |
| Head Diameter Tolerance | (-0.005" to +0.005") |
| Head Height | 0.181" |
| Head Height Tolerance | (-0.009" to +0.009") |
| Head Subtype | Serrated Washer |
| Head Type | Indented Hex |
| Length | 1-1/2" |
| Material | Steel |
| Pack Quantity | 1 |
| Point Type | #3 Drill Point |
| Screw Subtype | Standard |
| Screw Type | Self-Drilling |
| System of Measurement | Inch |
| Tapping/Drilling Screw Type | BSD |
| Thread Direction | Right Hand |
| Thread Size | 1/4"-14 |
| Threading | Fully Threaded |
