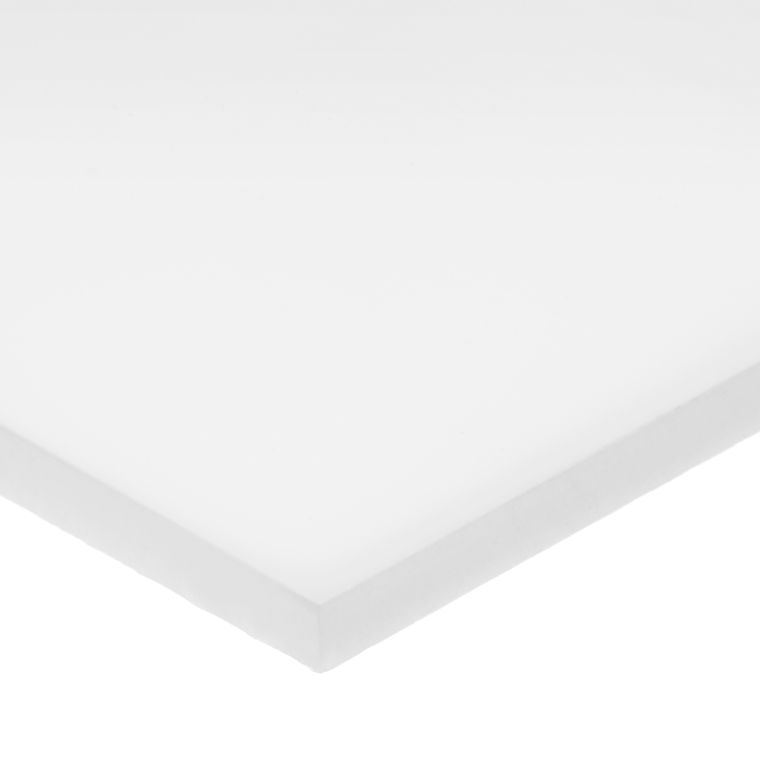

White PTFE Bar - 3/16" Thick x 1-1/2" Wide x 48" Long
Brand
USA Sealing
Item #
AC5683
Mfr. Model #
BULK-PS-PTFE-221
PTFE is the most slippery and wear-resistant . It also has excellent resistance to extreme temperatures and chemicals.
Specifications
| Backing Type | Plain |
|---|---|
| Brand Name | USA Sealing |
| Brand Part Number | BULK-PS-PTFE-221 |
| Clarity | Opaque |
| Coefficient of Friction | 0.07 |
| Color | White |
| Comparable To | Rulon, Teflon® |
| Density | 0.078 lbs / cu. in. |
| Friction Rating | Very Slippery |
| Grade | Standard |
| Hardness | 55D |
| Impact Strength | 3.5 ft. - lbs./in. |
| Impact Strength Rating | Good |
| Length | 48" |
| Length Tolerance | (-1.000" - +1.000") |
| Material | PTFE |
| Shape | Bar |
| Specifications Met | FDA, MIL-P-22241 Type II Grade A, UL 94 V-0 |
| Temperature Range | -290° to 500° F |
| Tensile Strength | 3,000 psi |
| Tensile Strength Rating | Poor |
| Thickness | 3/16" |
| Thickness Tolerance | (-0.000" - +0.008") |
| Water Absorption | 0.0001 |
| Water Absorption Rating | Excellent |
| Width | 1-1/2" |
| Width Tolerance | (-0.010" - +0.010") |
Price
$51.09
/
each
