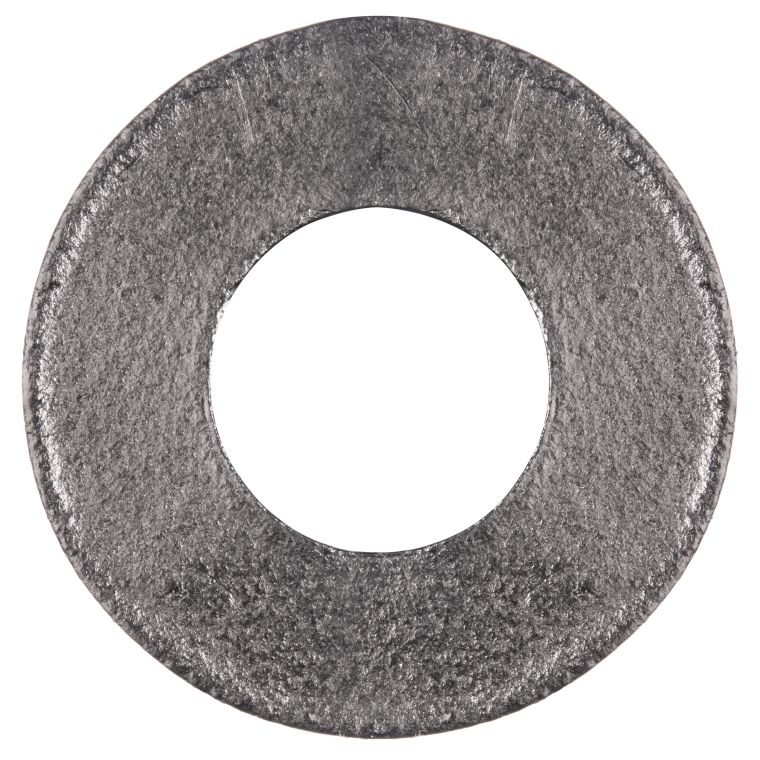

Ring Reinforced Graphite Flange Gasket for 1" Pipe - 1/8" Thick - Class 300
Brand
USA Sealing
Item #
AB0204
Mfr. Model #
BULK-FG-938
Graphite has the highest temperature resistance of our gasket materials and has excellent chemical resistance. Reinforced with a stainless steel insert for added stability. More compressible than PTFE.
Specifications
| Brand Name | USA Sealing |
|---|---|
| Brand Part Number | BULK-FG-938 |
| Color | Dark Gray |
| For Flange ANSI Class | 300 |
| For Pipe Size | 1" |
| ID | 1-5/16" |
| Material | Graphite with Stainless Steel Insert |
| OD | 2-7/8" |
| Specifications Met | ASME B16.21 |
| Temperature Range | -400° to 975° F |
| Thickness | 1/8" |
| Type | Ring |
Price
$2.93
/
each
