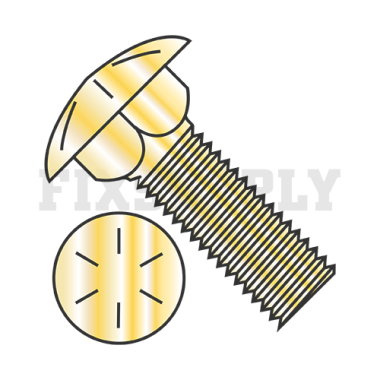

Shaker Screen Carriage Bolt - Square Neck Round Head - Yellow Zinc Grade 8 Steel - 5/8"-11 Thread - 2" Long

Item #
Mfr. Model # 6232C8

Shaker screen bolts, also known as downhole bolts, are similar to carriage bolts but are stronger and always fully threaded. Shaker screen bolts are commonly used to bond wood-to-wood and wood-to-metal. The round head has a domed head, a smaller surface bearing, and protrudes above the fastening surface. Yellow zinc-plated steel offers better corrosion resistance than standard zinc-plated steel and produces a yellow-colored finish.

More Information
Body Width 0.624"
Body Width Tolerance (-0.019" to +0.019")
Bolt Subtype Shaker Screen
Bolt Type Carriage
Brand Name Kanebridge
Brand Part Number 6232C8
Finish Yellow Zinc
Grade Grade 8
Head Height 0.3285"
Head Height Tolerance (-0.016" to +0.016")
Head Subtype Standard
Head Type Round
Head Width 1.282"
Head Width Tolerance (-0.063" to +0.063")
Length 2"
Material Steel
Neck Type Square
Pack Quantity 1
Specifications Met ASME B18.5, SAE J429
System of Measurement Inch
Tensile Strength 150,000 psi
Thread Direction Right
Thread Size 5/8"-11
Thread Spacing Coarse
Thread Type UNC
Threading Fully Threaded
$2.33 / each

Must purchase in increments of 175
Expected to ship Mon. Sep 25
